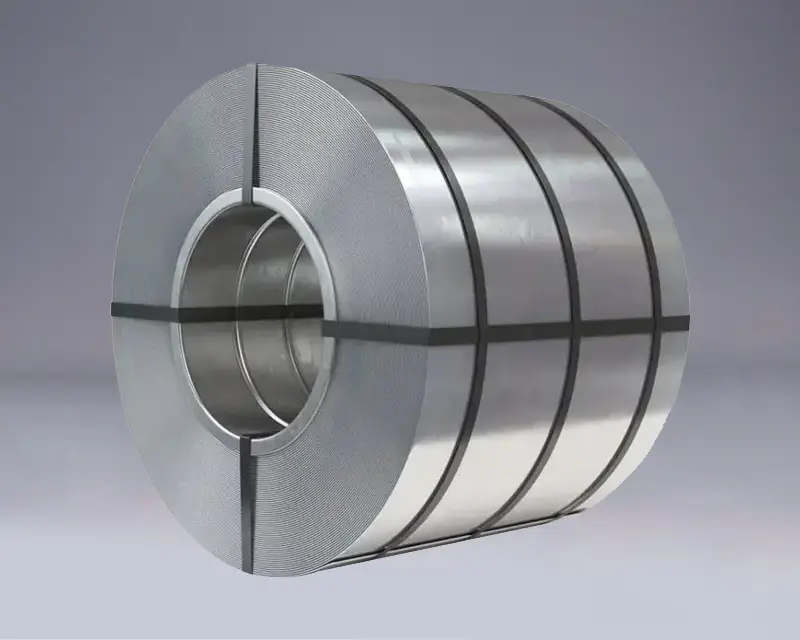

SPCC SD Cold Rolled Steel Coil

Core advantages of products

High strength and precision processing performance

Full hard steel coils are made by cold rolling process from hot-rolled pickled coils, with a hardness of more than HRB 90, a smooth surface, and a precise thickness tolerance (±0.02mm), suitable for precision processing such as laser cutting and punching13.

SPCC series: Complies with JIS G3141 standard, with moderate carbon content, widely used in general fields such as structural parts and housings12.

DC01-DC03 series: Complies with EN 10130 standard, low-carbon design improves stamping ductility, especially suitable for automotive parts and complex molded parts1213.

Diversified specifications and customized services

Thickness range: 0.17mm-3.5mm (supports ultra-thin plate customization)13

Width selection: 600mm-1500mm, can be cut to customer required size in strips

Surface state: full hard state (rolled hard coil), annealed state optional, adapted to the needs of different processing stages

Cost-effectiveness and environmental protection characteristics

Fully hard steel coils can be directly used for simple bending or galvanized substrates without annealing, reducing processing energy consumption; Secondary Quality steel coils provide cost-effective options to reduce material waste13.

Application scenarios and technology matching

Industry Recommended materials Typical uses

Automobile manufacturing DC01-DC03 Door inner panels, brackets, chassis structural parts

Home appliance production SPCC Refrigerator shell, washing machine panel, air conditioner frame

Mechanical engineering SD series full hard state Conveyor belt components, protective covers, precision instrument shells

Architectural decoration Secondary quality CR steel coil Light partitions, decorative profiles, non-load-bearing structural parts

Technical parameters and standards

Project SPCC series DC01-DC03 series

Implementation standard JIS G3141 EN 10130

Tensile strength 270-410 MPa 270-350 MPa (DC01 benchmark)

Elongation (A80mm) ≥28% ≥34% (DC03 deep drawing grade)

Surface roughness Ra ≤0.8μm (smooth rolling) Ra ≤1.2μm (standard rolling)

Quality control and service guarantee

Strict classification management: Prime and secondary products are supplied in different categories, and secondary products are strictly tested to ensure that they meet the needs of non-critical structural parts13.

Full process traceability: From raw hot-rolled coils to cold-rolled finished products, chemical composition and mechanical properties data are recorded throughout the process, and a third-party SGS test report is provided.

Fast delivery system: More than 5,000 tons of inventory are available, supporting small batch trial orders (1 roll minimum order) and emergency orders within 48 hours.
