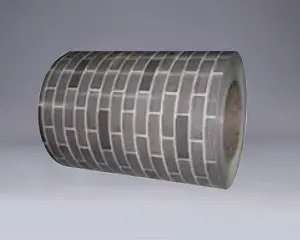

Brick Printing Ppgi Ppgl Steel Coil

Imitation Brick Printing Ppgi Ppgl Steel Coil is designed for building envelope structure, using DX51D-DX53D high-strength substrate, combined with digital brick pattern printing technology and military-grade coating process. The product is suitable for corrugated roof panels, rolling doors, industrial enclosures and other fields, providing an integrated solution of weather resistance, mechanical strength and masonry aesthetics.

Core advantages

The perfect combination of masonry aesthetics and industrial performance

600dpi high-precision digital printing, replicating 10+ brick patterns such as red bricks, blue bricks, cultural stones, etc., with a color reproduction of 98%.

Matte/high gloss surface treatment, delicate touch, visual effect comparable to real brick walls.

Graded substrate, precise adaptation needs

DX51D (yield strength ≥ 245MPa): general type, suitable for conventional corrugated board forming.

DX52D (yield strength ≥ 280MPa): stamping grade, meeting the complex bending requirements of rolling doors.

DX53D (yield strength ≥ 320MPa): ultra-deep drawing grade, used for high-precision door frames and reinforcements.

Military-grade protective performance

Galvanized layer ≥ 85g/㎡, salt spray test over 1000 hours, resistant to acid rain and sea breeze corrosion.

Fluorocarbon coating thickness ≥ 25μm, hardness 3H, scratch resistance, UV aging resistance.

Exclusive advantages of corrugated panels and rolling shutters

Corrugated roof panels:

High-strength substrates resist snow accumulation and wind uplift, suitable for 760/820/900 and other versions.

Hydrophobic coating design reduces rainwater retention and reduces corrosion risks.

Rolling shutters:

Excellent deep drawing performance, no creases on the surface of the door panel after forming, no coating cracking.

Optional fireproof coating (B1 grade) to meet the dual needs of security and fire protection.

Technical parameters

Project Index

Substrate Galvanized (GI) / Alu-zinc (GL) steel plate (DX51D-DX53D)

Thickness 0.4-1.0mm (corrugated plate) / 0.6-1.2mm (rolling door)

Width 914-1250mm (customizable)

Coating Fluorocarbon (PVDF), Polyester (PE)

Printing accuracy 600dpi, support CMYK/Pantone full color gamut

Bending performance T=0 (no crack, ASTM D522)

Fire rating B1 (optional)

Application scenarios

Military facilities: camouflage roofs, rolling doors of ammunition depots, and vents for underground fortifications.

Industrial plants: anti-corrosion corrugated roofs of chemical plants and coastal warehouses.

Public security: high-strength protective rolling doors of prisons and banks.

Emergency projects: earthquake-resistant board house roofs, flood control baffles.

Cultural and tourism buildings: antique commercial street facades, scenic area service centers.

Customized service

Brick pattern customization: provide standard brick pattern library or sample reproduction, support old and mosaic design.

Function upgrade:

Thermal insulation coating (thermal conductivity ≤ 0.03W/(m・K))

Sound insulation coating (noise reduction ≥ 35dB)

Self-cleaning coating (contact angle ≥ 150°)

Pattern development: corrugated plate pattern opening (760 type / 820 type / 900 type, etc.), rolling door reinforcement rib design.

Why choose us?

✅ Military certification: passed GJB 150A military equipment environmental test, ISO 9001/14001 system certification.

✅ Patented technology: 5 digital printing patents, brick pattern clarity leading the industry.

✅ Full process service: provide a one-stop solution for pattern design, mold development, and installation guidance.

Application Cases

Case 1: Renovation of a historical and cultural block

Project type: Antique commercial street roof and rolling door

Products used: DX52D galvanized steel coil (fluorocarbon coating + blue brick pattern printing)

Solution:

0.8mm thick substrate is rolled into 760 type corrugated board

Blue brick pattern printing restores the style of historical buildings, and the fluorocarbon coating is weather-resistant for 15 years

Rolling door is equipped with fireproof coating and invisible reinforcement ribs

Results: Construction period is shortened by 50%, and the title of "Historical Building Revitalization Demonstration Project" was awarded

Case 2: Coastal chemical plant protection project

Project type: workshop roof and equipment protection door

Products used: DX51D aluminum zinc steel coil (silicon modified polyester coating + red brick pattern printing)

Solution:

0.6mm thick substrate is suitable for 900 type corrugated board, typhoon resistance level 12

Silicon modified polyester coating acid and alkali resistance increased by 40%, salt spray test 800 hours

Red warning stripe printing meets safety regulations

Results: 5 Years without rust, maintenance costs reduced by 70%
